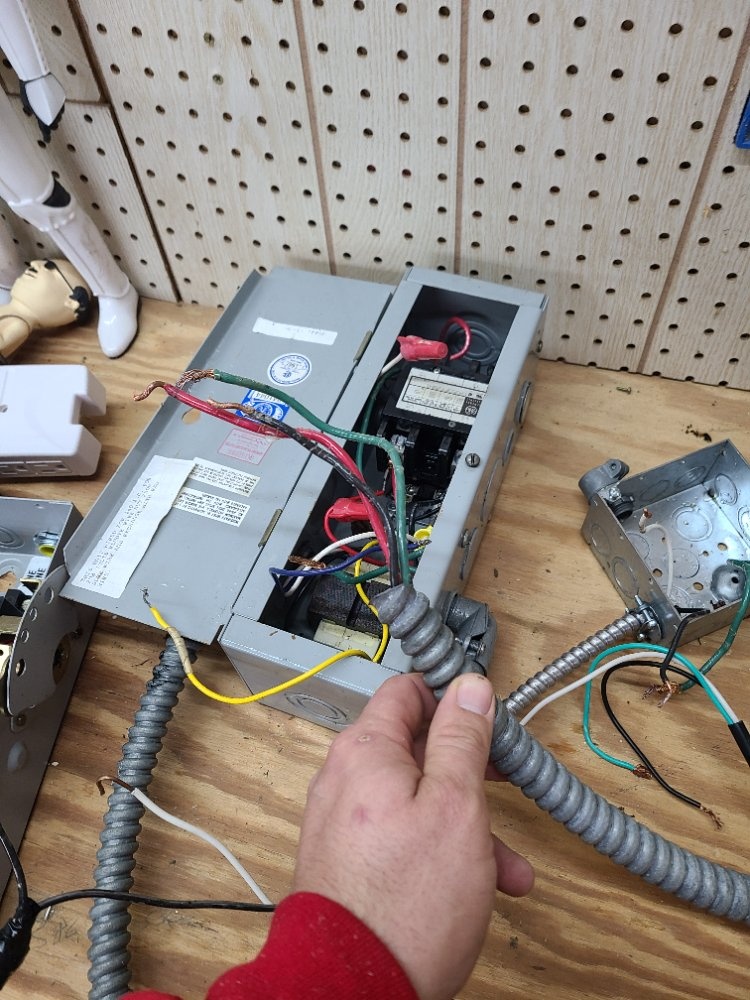

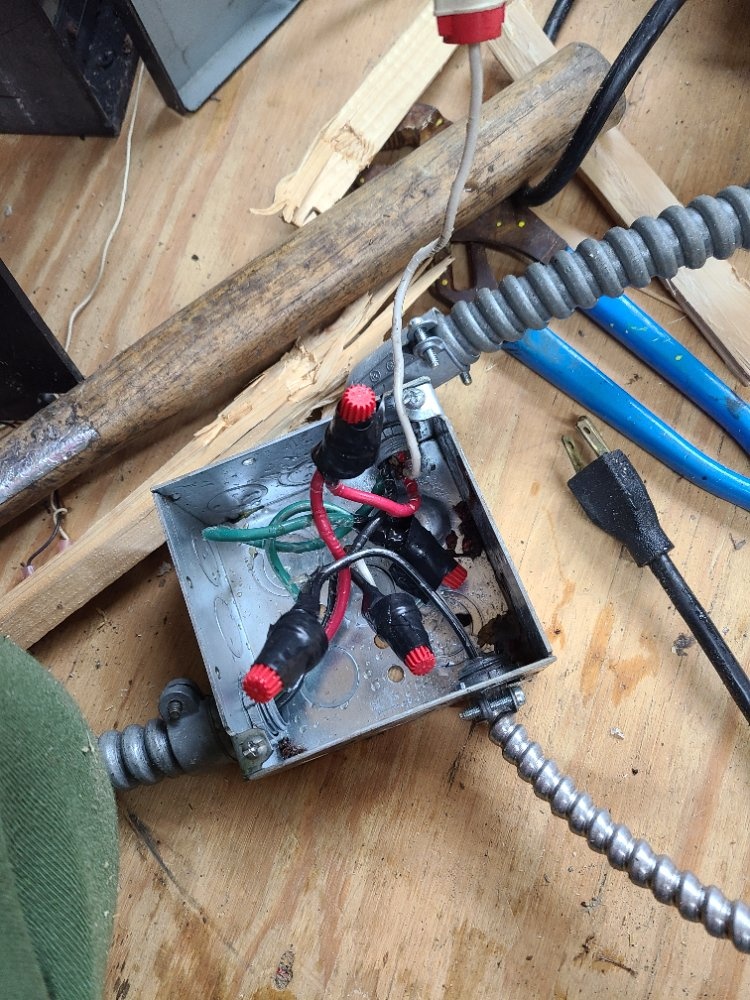

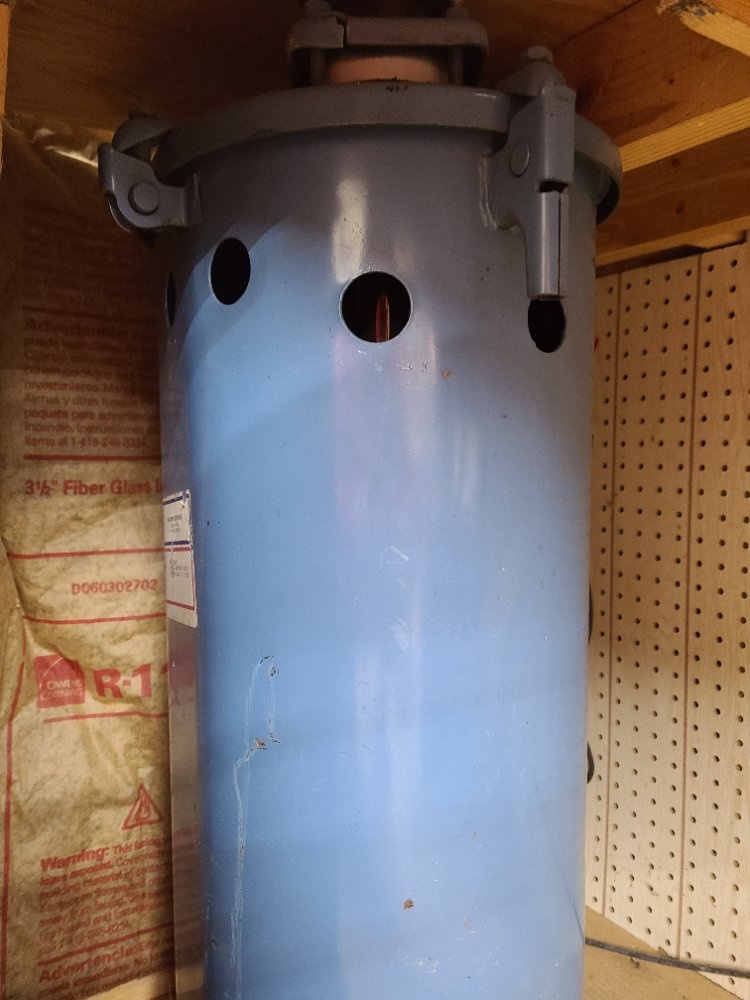

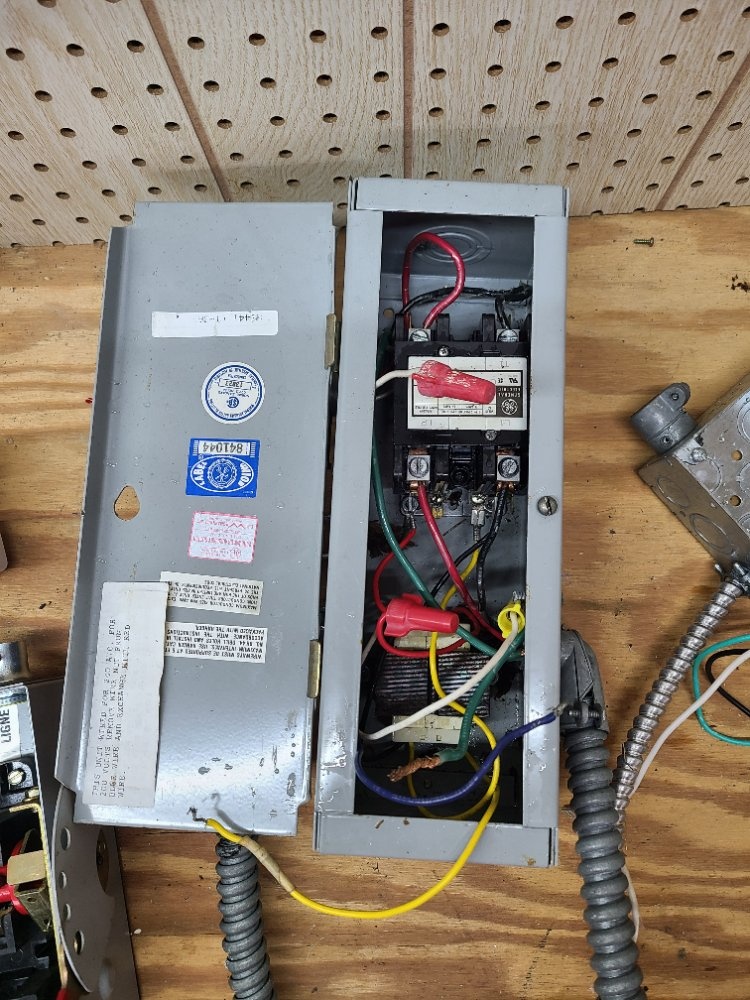

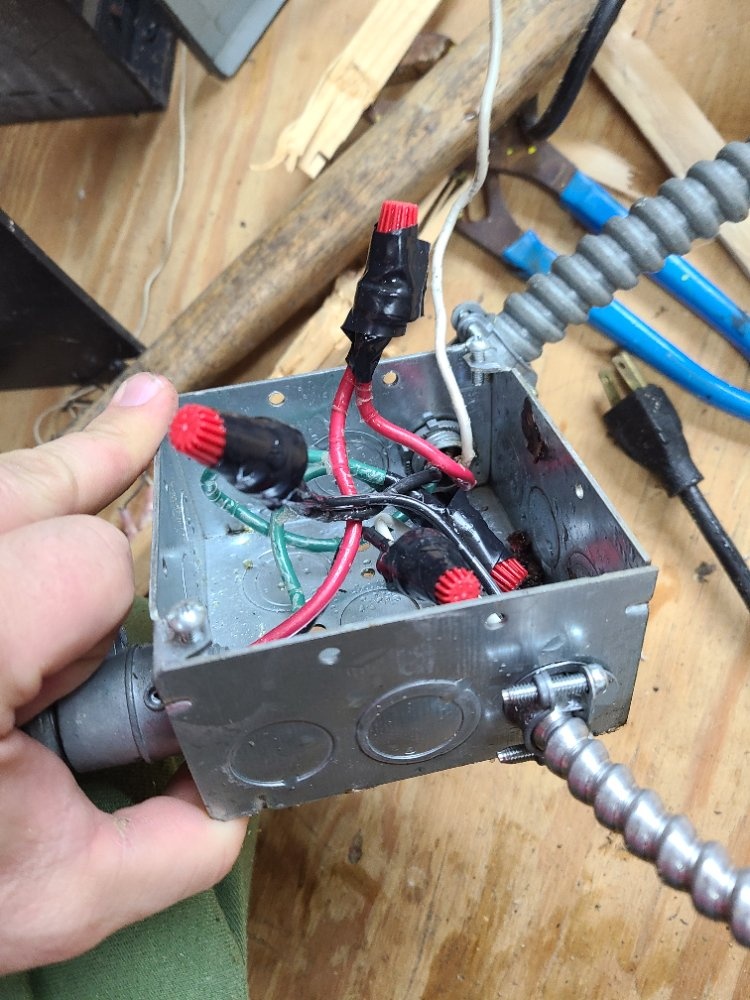

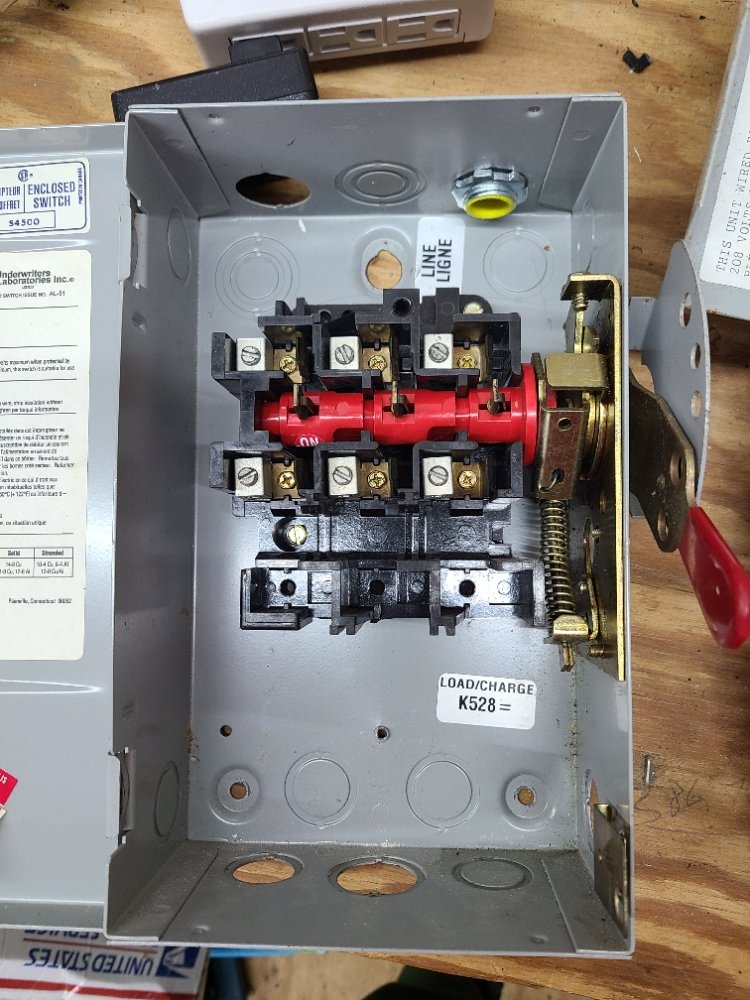

So I picked up some equipment from a shop and I got it all in pieces. I'm not by any means new to wiring or schematics but I seem to be scratching my head as to how this assembles. The bombarder is wired up and in position. I've looked through delcos schematics/ wiring and I still can't make sense of it. Looking for any assistance. TYIA

What happened to your original post?   I had replied and provided some links and other information and added some additional material for you but when I went back to followup, your post was gone and apparently reposted?  Please confirm this is working before I retype two pages of information for you.
